| Model | SY-T988FAHZ37FA |
|---|---|
| Image Sensor | 1/2.8″ 8Mega pixelsCMOSSensor |
| Chipset | FH8556H+IMX415 |
| Effective Pixels | 3840(H)×2160 (V) |
| Video Resolution | 8MP:HDTVI/CVI/AHD:15fps@3840x2160P, CVBS:25/30fps@960H |
| Electronic Shutter | AUTO, 1/25 – 1/50,000s |
| Min. Illumination | [email protected](AGC ON), 0Lux IR on |
| Video System | PAL/NTSC |
| Video Output | 1 -BNC, HDCVI / HDTVI/AHD/CVBS , adjustable |
| Video Switch | Dip Switch |
| Day/Night | Auto/Color/(B/W)/EXT |
| WDR | Digital WDR |
| White Balance | AWB/ATW/Indoor/Outdoor/Manual |
| AGC/BLC | Support |
| DNR | 2D 3D NR |
| OSD Menu | Multiple languages OSD menu control up the coaxial cable (UTC) |
| Other | Defog, Privacy Mask, Mirror, Flip |
| IR Led | 18pcsSMDIR Leds |
| IR Distance | 25-30M |
| Focal length | 3.6mmFixedlens |
| Power Supply | 12 VDC ± 10% |
| Power Consumption | < 5 W |
| Operating Temp. | -20℃-(+60)℃, 10%-90%RH |

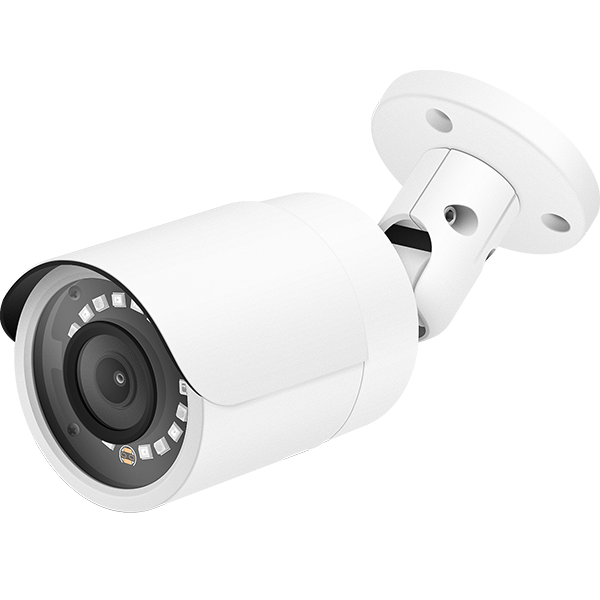

8MP OEM 4K 30M IR distance IR Bullet Fixed Lens HD Hybrid 4 in1 Camera
- 4-in-1 HDCVI / HDTVI/AHD / CVBS optional output
- 4K resolution 3840 x 2160
- Ultra low illumination 0.01Lux
- Up to 300M long distance and high speed real time monitoring
- OSD menu control up the coaxial cable (UTC)
- Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR
- D-WDR, Defog, Privacy Mask, Mirror
- Lightning protection
- Strong water-proof housing, IP66
- 3.6 mm fixed lens
| Resolution | |
|---|---|
| Sensor | 1/2.8" 8Mega pixelsCMOSSensor |
| Form Factor | Bullet |
| IR Distance | 25-30M |
| Lens | 3.6mmFixedlens |
| Power Supply |
