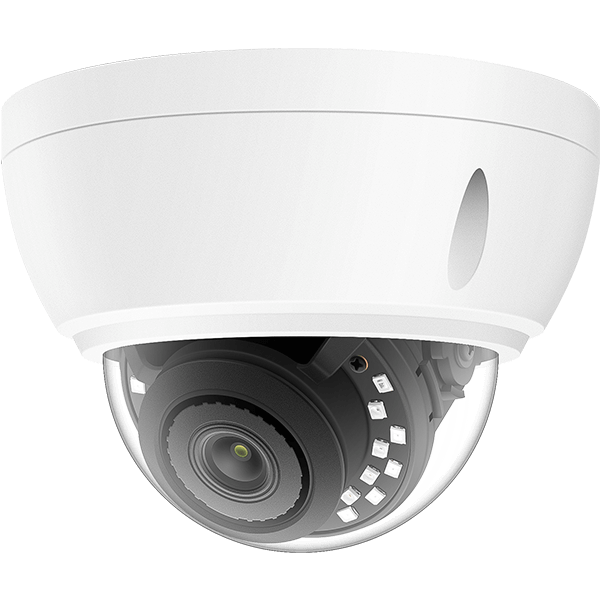

8MP 4K 4 in 1 IR Vandal Proof Varifocal 2.8mm-12mm lens Camera

8MP 4K 4 in 1 IR Vandal Proof Varifocal 2.8mm-12mm lens Camera

  • 4-in-1 HDCVI / HDTVI/AHD / CVBS optional output
  • 4K resolution 3840 x 2160
  • Ultra low illumination 0.01Lux
  • Up to 300M long distance and high speed real time monitoring
  • OSD menu control up the coaxial cable (UTC)
  • Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR
  • D-WDR, Defog, Privacy Mask, Mirror
  • Lightning protection
  • Strong water-proof housing, IP66
  • 2.8-12 mm manual lens
Get a Quote
Model SY-T988FAHBB56A
Image Sensor 1/2.8″ Sony IMX415 CMOS
Chipset FH8556
Effective Pixels 3840(H)×2560 (V)
Video Resolution AHD/TVI/CVI:15fps@2560×1944P,12.5fps@2560×1944P(PAL), CVBS:960H, adjustable
Electronic Shutter AUTO, 1/25 – 1/50,000s
Min. Illumination [email protected](AGC ON), 0Lux IR on
Video System PAL/NTSC
Video Output 1 channel, HDCVI / HDTVI/AHD/CVBS , adjustable
Video Switch DIP switch
Day/Night Auto/Color/(B/W)/EXT
White Balance ATW/Manual
DNR 2D/3D NR
OSD Menu Multiple languages OSD menu control up the coaxial cable (UTC)
IR Led 18pcsSMD IRLeds
IR Distance 20-30M
Focal length 2.8-12mm manual varifocallens
Power Supply 12 VDC ± 10%
Power Consumption < 5 W
Operating Temp. -20℃-(+60)℃, 10%-90%RH
Resolution

Sensor

1/2.8" Sony IMX415 CMOS
IR Distance

20-30M
Lens

2.8-12mm manual varifocallens
Power Supply
