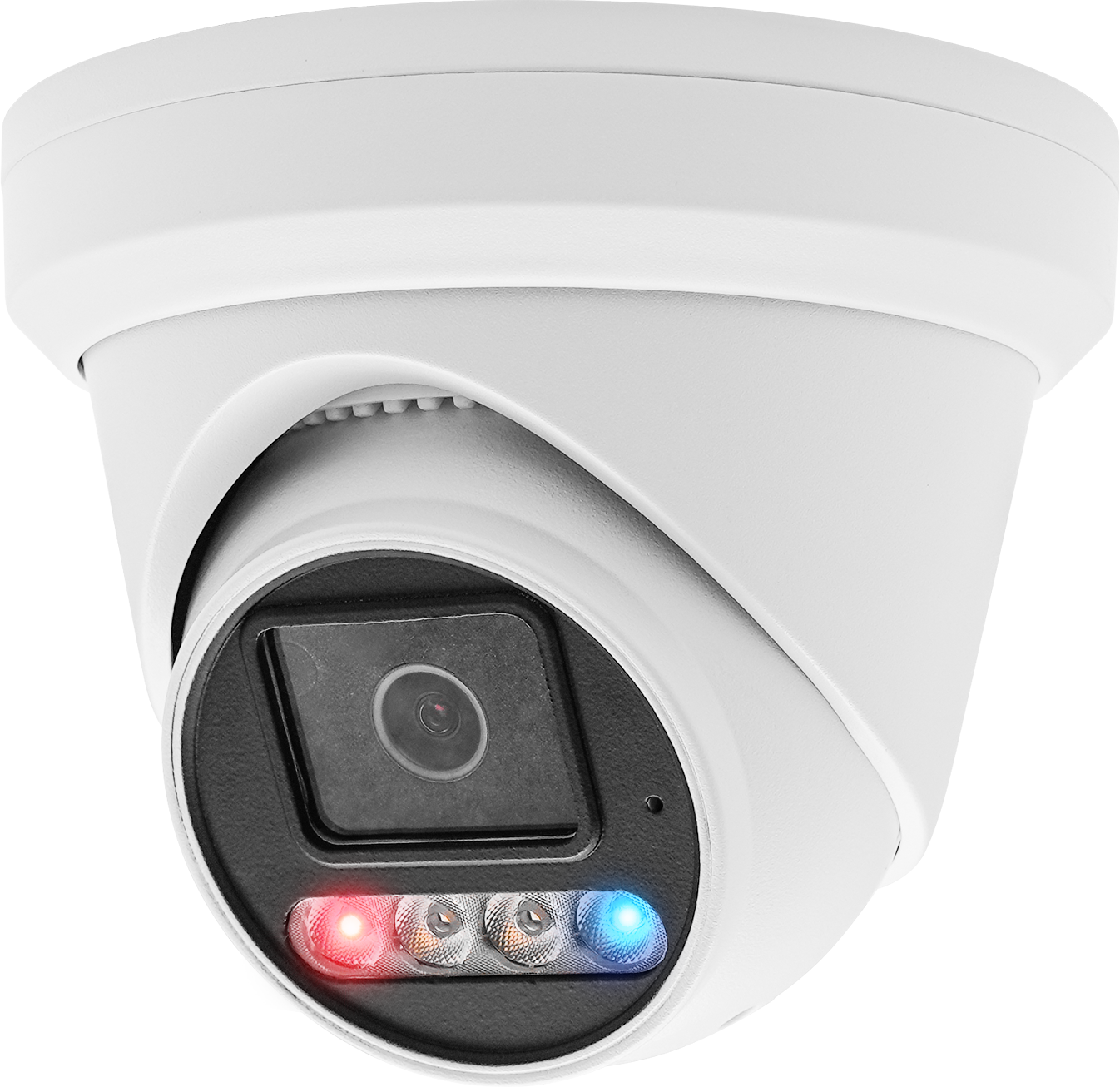

8MP VCA AI Face Detection Human&Vehicle Detection Red&Blue Flash Dual Light Two Way Audio PoE Turret IP Camera

8MP VCA AI Face Detection Human&Vehicle Detection Red&Blue Flash Dual Light Two Way Audio PoE Turret IP Camera

  • 1/2.7″ CMOS sensor
  • 4K resolution 3840 x 2160P
  • Face Detection, Human&Vehicle Detection, Line Crossing, Area Entry/Leaving Detection, Area Intrusion Detection
  • Low illumination 0.01Lux
  • Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT
  • Motion Detection, Privacy Mask, Flip
  • RTSP and Onvif 23.12 Compatible
  • H.265/ H.264 Dual-stream Media Server
  • Easy-to-use P2P Cloud Service
  • Multi web browser, PC Client, Mobile APP, Remote access
  • RJ45 100mbps Network Port, IEEE802.3af PoE
  • Lightning Protection 4000V
  • Strong Water-proof Housing, IP67
  • 2pcs IR & Warm Dual Lights, 1pc Red& 1pc Blue lights，Light Distance:20-30M
  • Warm Light on and Colorful Imaging When Detect Human Body or Vehicle
  • 2.8mm F1.6 Fixed Lens
  • Two Way Audio / SD Slot / Reset Button
  • Support audio alarm to warn intruders off
Get a Quote
Model SY-N798EDRB97RA
Image Sensor 1/2.7″8MPGC8613CMOS
SoC Chip SigmastarSSC378DE
Effective Pixels 3840(H)×2160 (V)
ExposureShutter AUTO/Manual: 1/10s ~ 1/8000s,MaxShutterspeedadjustable
Day/Night Auto(Active/passive/schedule)/Day/Night, switch threshold, sensitivity, anti-flicker(Auto/50Hz/60Hz)
Image Adjust Brightness,Saturation,Sharpness,Contrast,Denoise (0-100%) adjustable
White Balance AWB/MWB
Light Mode Smart(dual-light) / Infrared / White light, adjustable
Light Control Auto/Manual,Brightness level(0-100%) adjustable
DNR 2D/3DDNR
Video Standard H.264/H.265
VideoResolution Main Stream:
VideoBitrates Main stream:64kbps-8Mbps
Image Snapshot Sub Stream(SD) snapshot
Image Rotation 0 / 90 / 180 / 270 degree adjustable
Border Crop X crop, Y crop
Image Mirror horizon / vertical / horizon&vertical adjustable
OSD Overlay Font size(1-4), position,Time, Title, AM/PM, Color, User OSD, Alarm OSD
Privacy Mask 4 areas
Region of Interest ROI: Each stream support 8 areas
Audio Standard G.711-u/G.711-a/AAC/PCM, AEC
Built-in Mic YES
Built-in Speaker YES
Light 2pcs IR & WarmDualLights,1pc Red&1pcBluelights
Light Distance 20-30M
Focal length F1.6 2.8 mmFixedLens
Motion Detection Yes
Digital IO Alarm 1 pair Alarm-in/Alarm-out, normally open/normally close (optional)
Human Vehicle Detection Yes, (2-20 meters)
Cross Line Detection Yes, 4 lines
Perimeter protection Yes, 4 areas
Face Detection Yes, (1-5 meters)
Target DetectionType HumanShape, vehicle, non-motor vehicle, Pet, Face (12px-1000px)
Trigger Action Linkage Snapshot, Record, Relay optional,White LED Flash,Email, FTP, NAS storage (NFS)
Simultaneous Detection Maximum 16 targets simultaneous detection
Storage Type Schedule/Trigger: Email, FTP, NAS(NFS)
Protocol HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/IPv4/IPv6/NFS/DDNS
IP Address Filtering Yes (Allow list, Deny list)
P2P Mobile APP Android, IOS
Web Access IE, Firefox, Chrome, Edge, Safari, etc.
PC Tool Windows, Mac
ONVIF 23.12 compatible (profile S G T M)
Network Port 1-RJ45, 100Mbps, POE(IEEE802.3af)
Power Supply 12 VDC±10%
Power Consumption < 8 W
Operating Temp. -20℃-(+60)℃, 10%-90%RH
Resolution

Sensor

1/2.8"8MPSony IMX415CMOS
Form Factor

Turret
Power Supply

AI Features
