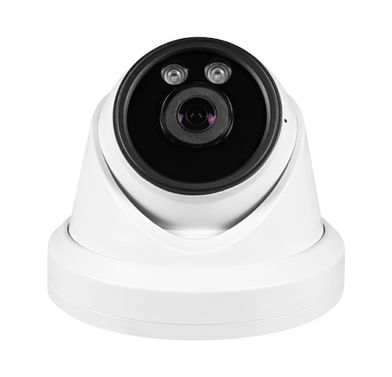

Wide Angle 6MP Human & Vehicle Detection IR Dome IP Camera

Wide Angle 6MP Human & Vehicle Detection IR Dome IP Camera

  • 1/2.8″ Sony CMOS sensor
  • 6MP HD resolution 3072 x 2048 output
  • Ultra low illumination 0.01Lux
  • Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT, Privacy Mask, Mirror
  • D-WDR, Motion Detection, Human Detection, Vehicle Detection
  • RTSP and Onvif 17.06 compatible
  • H.265/H.264 / MJPEG dual-stream media server
  • Easy-to-use P2P Cloud service
  • Multi web browser, PC Client, mobile APP remote access
  • RJ45 100mbps network port, IEEE802.3af PoE
  • Lightning protection 4000V
  • Strong water-proof housing, IP67
  • 2 pcs Array IR Led, IR distance 30 meters
  • HD 2.1 mm fixed Lens
  • CE, FCC, RoHS, ISO9001 certification
Get a Quote
Model SY-W716AHBB97WA
Image Sensor 1/2.8″ Sony CMOS
Effective Pixels 3072(H)×2048 (V)
Electronic Shutter AUTO, 1/25s ~ 1/100000s
Min. Illumination [email protected](AGC ON), 0Lux IR on
Day/Night Auto/Color/(B/W)/Timing
WDR Digital WDR
White Balance Auto/Manual
AGC/BLC/HLC Support
DNR 2D/3D DNR
Other Multi-lines OSD, Motion Detection, Privacy Mask, Mirror
Video Standard H.264/H.265
Video Resolution Main Stream:
Video Bitrates 64Kbps – 8Mbps, VBR/CBR
Audio Standard G.711-u/G.711-a/AAC
Built-in Mic Optional
Smart Event Human Detection
IR Led 2pcsArray IR Leds
IR Distance 20-30 M
Focal length 2.1mm fixed
FOV Horizontal: 135° ; Vertical: 75° ; Diagonal: 156°
Protocol HTTP(S)/RTSP/RTMP/FTP/NFS/SMTP/DHCP/NTP, etc.
P2P Yes
Web IE , Firefox 32bit ESR, Chrome, etc.
Media CMS, Android, IOS
ONVIF 17.06 compatible
Network Port 1-RJ45, 100Mbps
Power Supply 12 VDC ± 10%
POE IEEE 802.3at
Power Consumption < 5 W
Operating Temp. -30℃-(+60)℃, 10%-90%RH
Ingress Protection IP67
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK
Resolution

Sensor

1/2.8" Sony CMOS
Form Factor

Dome
IR Distance

20-30 M
Lens

2.1mm fixed
Power Supply

AI Features
